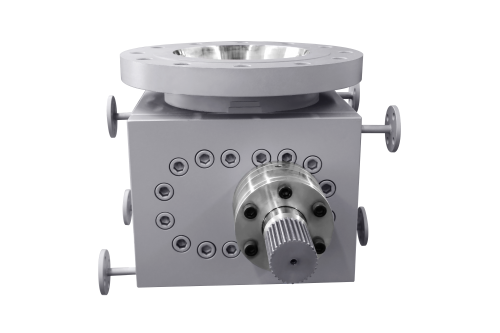

ZB-F系列釜底泵主要用于輸送真空反應器中的中高粘度的介質，吸入口大法蘭設計，在真空條件下能使高粘度介質順利吸入。主要應用于ABS、PS、PC、PET、SAN、PP、PE Bioploymers等介質。

　　計量泵、齒輪泵主要用于化工、化纖、紡絲、石油、食品工業、生物、醫藥等行業。如：腈綸、滌綸、高強度聚乙烯、樹脂、食品、醫藥、粘合劑、多元醇、石油等行業。

　　技術參數：

　　泵體：不銹鋼，碳鋼，哈氏合金，蒙乃爾合金

　　齒輪：工具鋼，滲氨鋼，特種材料及涂層，齒形為直齒，斜齒或人字齒

　　滑動軸承：工具鋼，鈦鉭合金，銀鎳合金，特種材料及涂層

　　軸封：機械密封，填料+螺旋密封，帶沖洗液的組合密封

　　加熱系統：導熱油加熱，聯苯氣體加熱

　　規格/流量范圍：0.5CC-12000CC

　　操作參數：

　　粘度：≤40000Pa.s

　　工作溫度：≤400℃(750°F)

　　清洗溫度：≤450℃(850°F)

　　進口壓力：真空--1.5MPa

　　出口壓差：≤40MPa

　　ZB-F series bottoms pump is mainly used to transport vacuum reactor high-viscosity media, the inlet Dharma Blue design, enabling high-viscosity media smoothly under vacuum suction. Mainly used in ABS, PS, PC, PET, SAN, PP, PE Bioploymers other media.

　　Metering pumps, gear pumps for the chemical industry, chemical fiber, spinning, oil, food industry, biotechnology, pharmaceutical and other industries. Such as: acrylic, polyester, high strength polyethylene, rubber, food, medicine, adhesives, polyols, petroleum and other industries.

　　Technical Parameters:

　　Pump body: stainless steel, carbon steel, Hastelloy, Monel

　　Gear: tool steel, ammonia seepage steel, special materials and coatings, tooth straight teeth, Helical or herringbone

　　Bearing: tool steel, titanium, tantalum alloy, silver-nickel alloys, special materials and coatings

　　Shaft seal: mechanical seals, packing + spiral seal with a combination of flushing liquid seal

　　Heating system: oil heating, gas heating biphenyl

　　Specifications / flow range: 0.5CC-12000CC

　　Operating parameters:

　　Viscosity: ≤40000Pa.s

　　Working temperature: ≤400 ℃ (750 ° F)

　　Cleaning temperature: ≤450 ℃ (850 ° F)

　　Inlet pressure: Vacuum --1.5MPa

　　Outlet pressure: ≤40MPa
